View from son's bathroom
View from son's bathroom

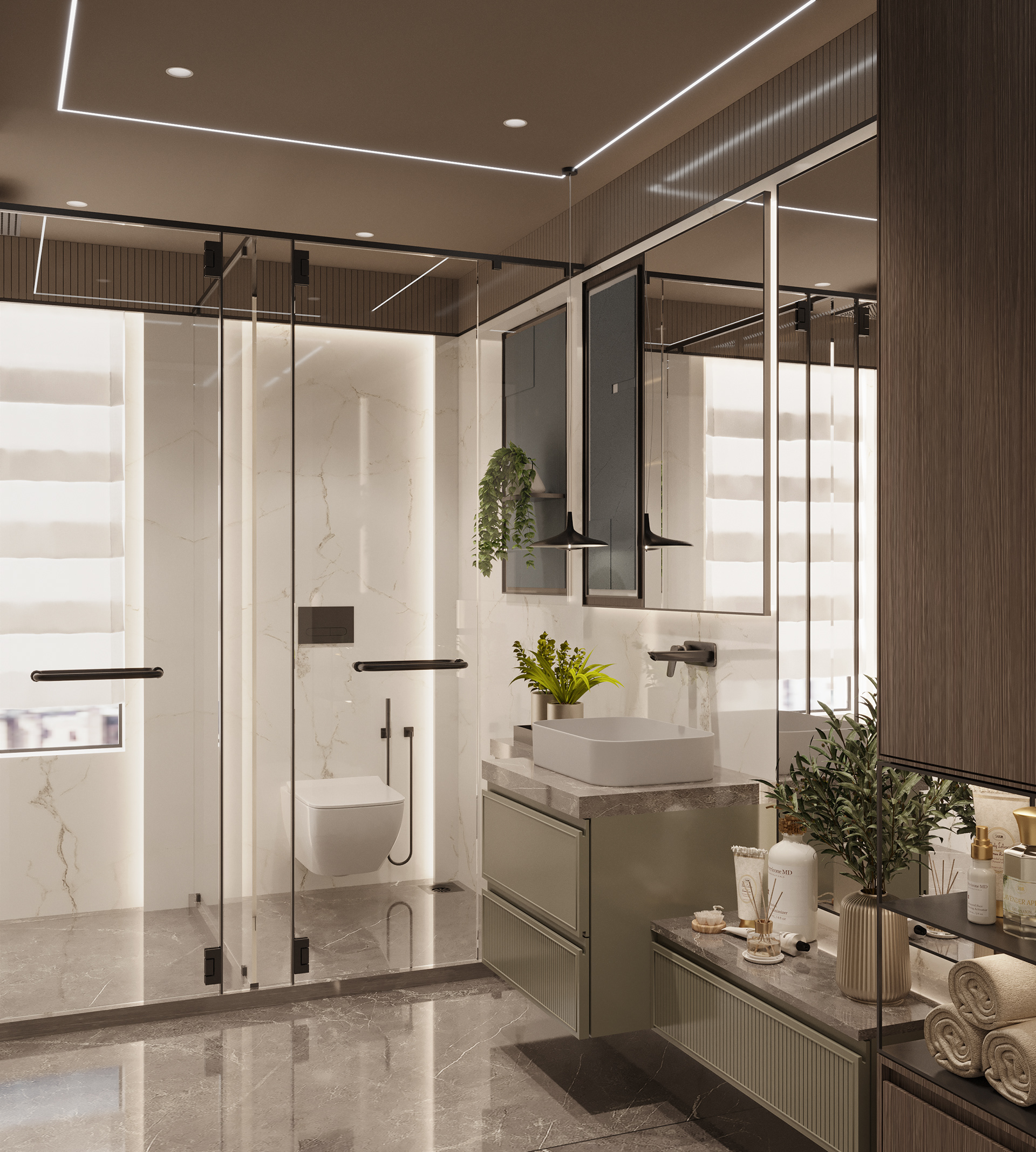

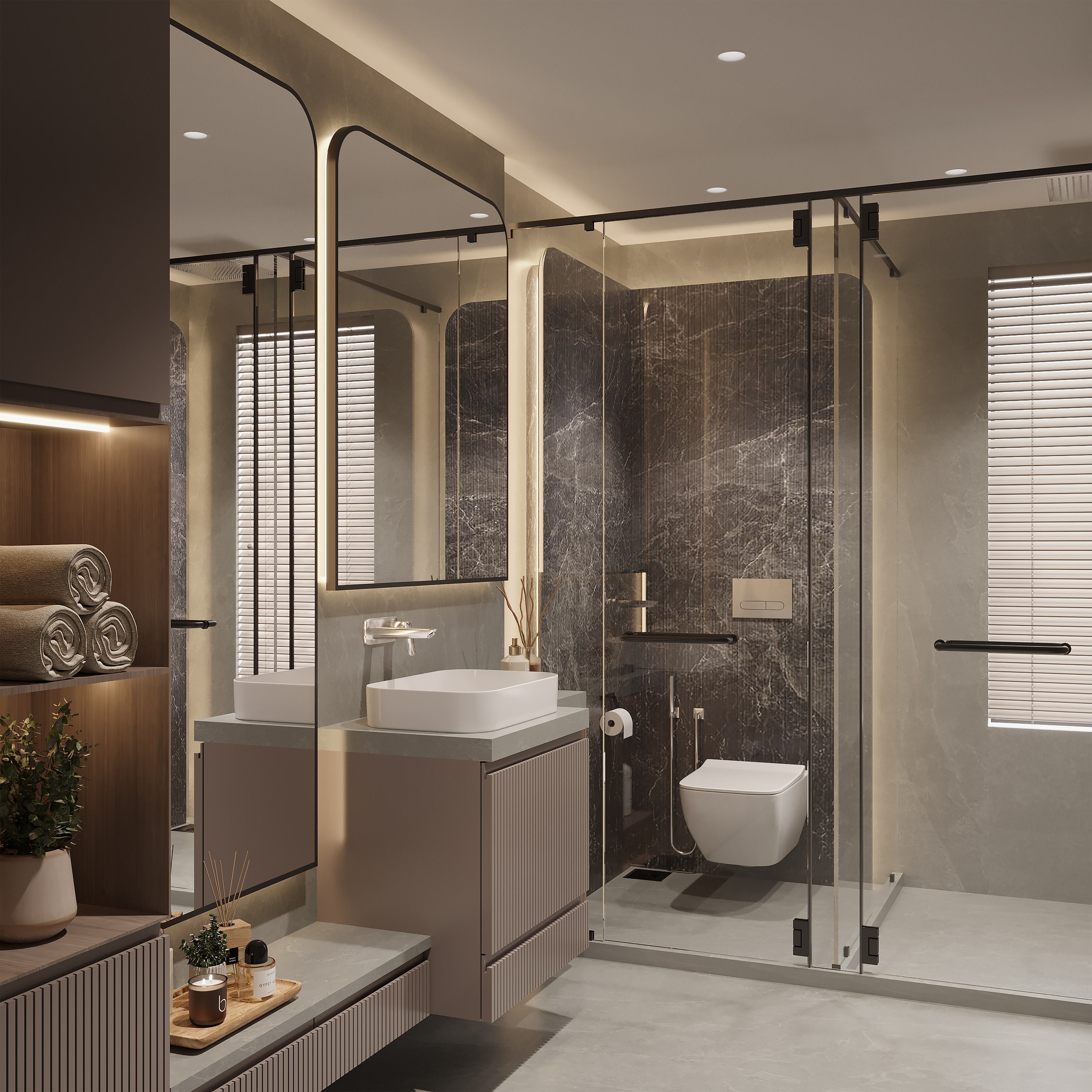

This luxury modern bathroom design highlights clean lines and refined detailing with a floating vanity, fluted cabinetry, and warm ambient lighting. Backlit mirrors enhance depth and elegance, while neutral stone surfaces and subtle accents create a calm yet sophisticated atmosphere.
View from daughter's bathroom
View from daughter's bathroom

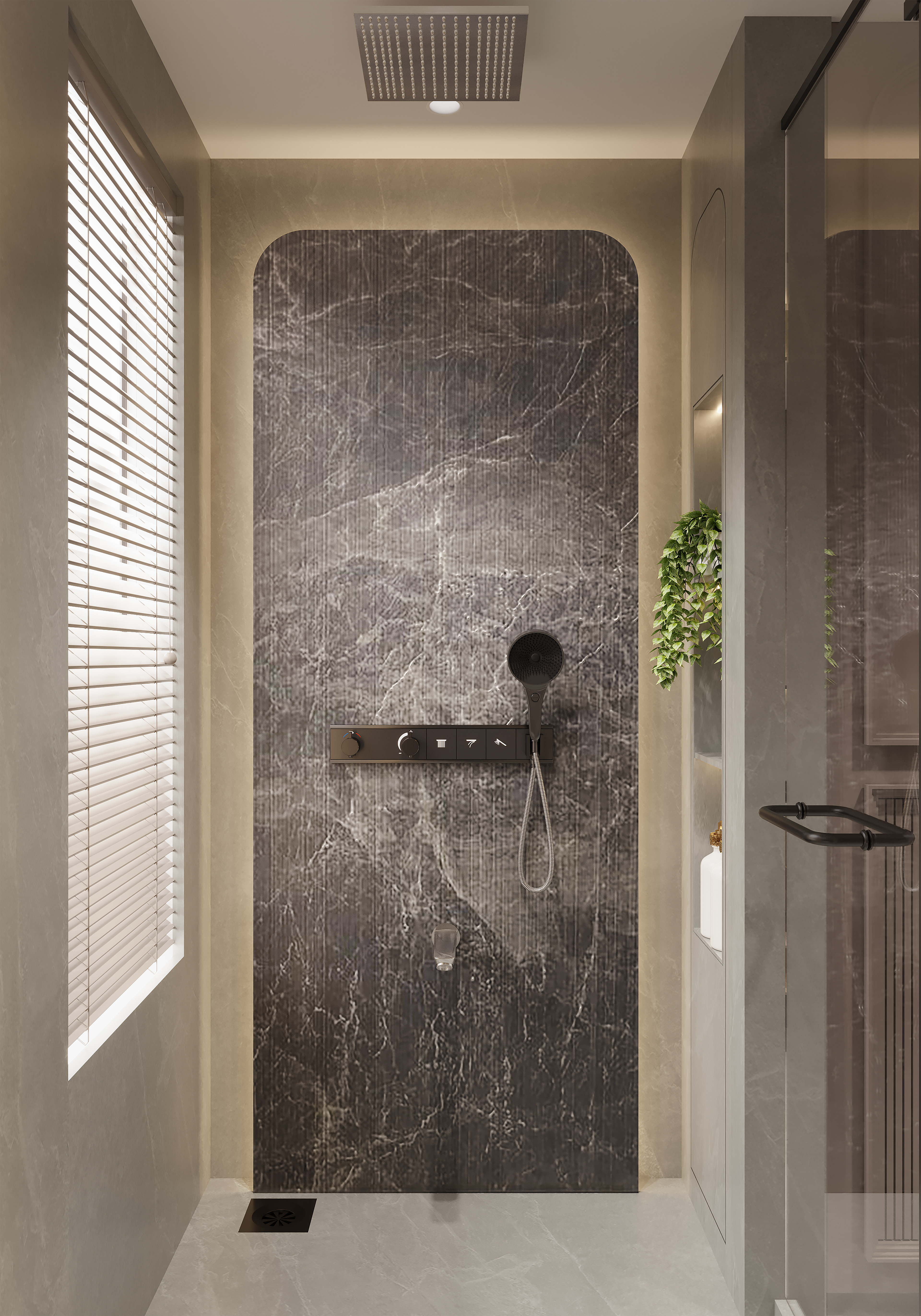

This bathroom showcases a sleek modern shower area with a striking dark marble feature wall framed in soft beige stone. The rainfall showerhead on the ceiling and matte black fixtures create a bold, contemporary look, while the concealed shower niche with greenery and accessories adds both function and a touch of freshness. Natural light filters in through the large window with blinds, highlighting the refined textures and giving the space a warm, inviting atmosphere.

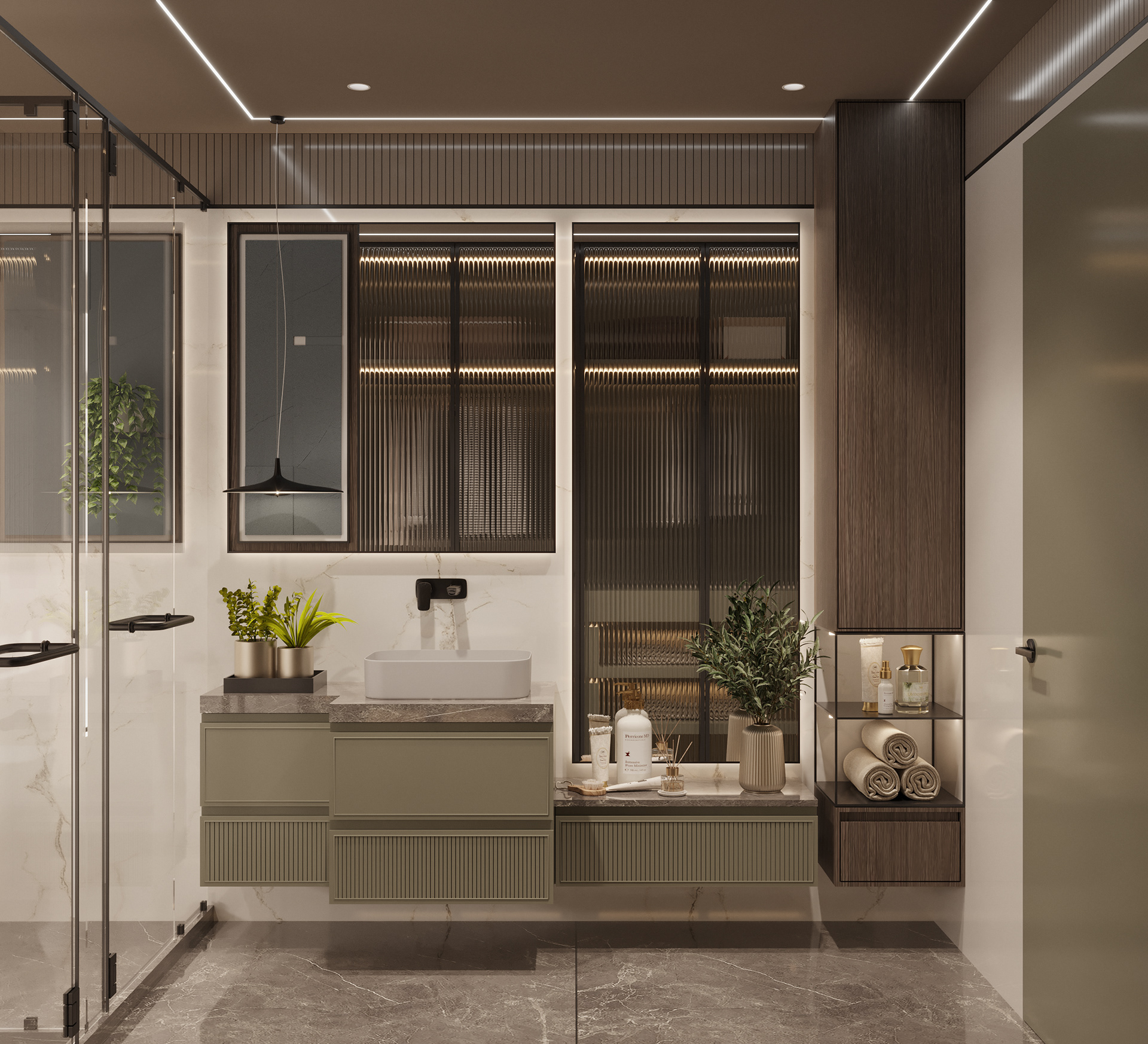

View from primary bathroom
View from primary bathroom
View from primary bathroom
View from primary bathroom
This washroom embraces a modern luxury aesthetic with its floating vanity in muted olive tones, paired with marble countertops and fluted detailing. Warm ambient lighting highlights the textured glass cabinets and open shelving, while greenery and curated accessories bring a refreshing touch of elegance to the space.

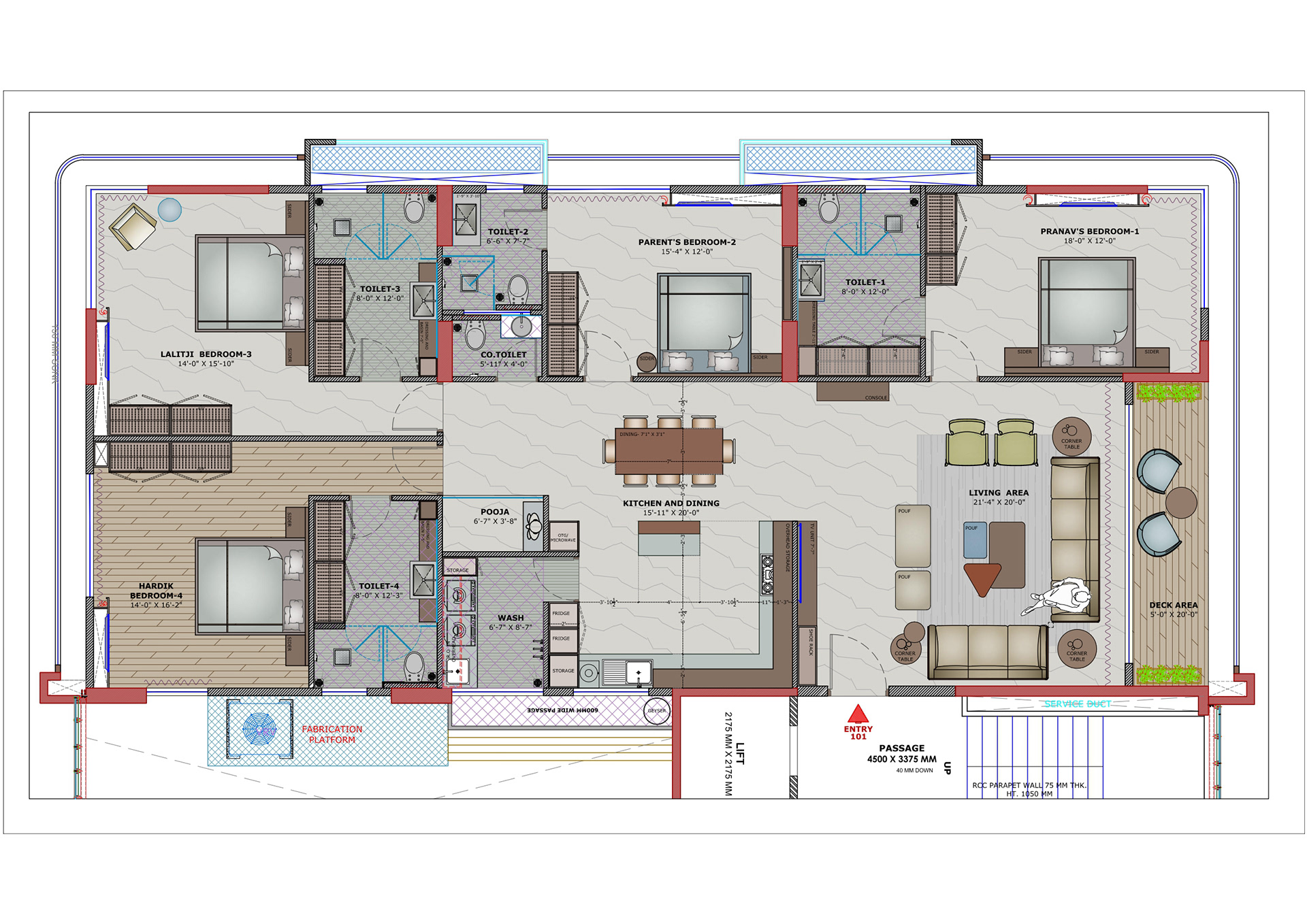

FLOOR PLAN
A well-planned 4-bedroom layout designed with Vastu principles in mind, ensuring balance and harmony. The central living and dining area forms the heart of the home, extending to a deck for outdoor connection. Bedrooms are spacious with attached or nearby toilets, and the kitchen and pooja are strategically placed to enhance positivity. Clear circulation through the passage makes the home both functional and auspicious.

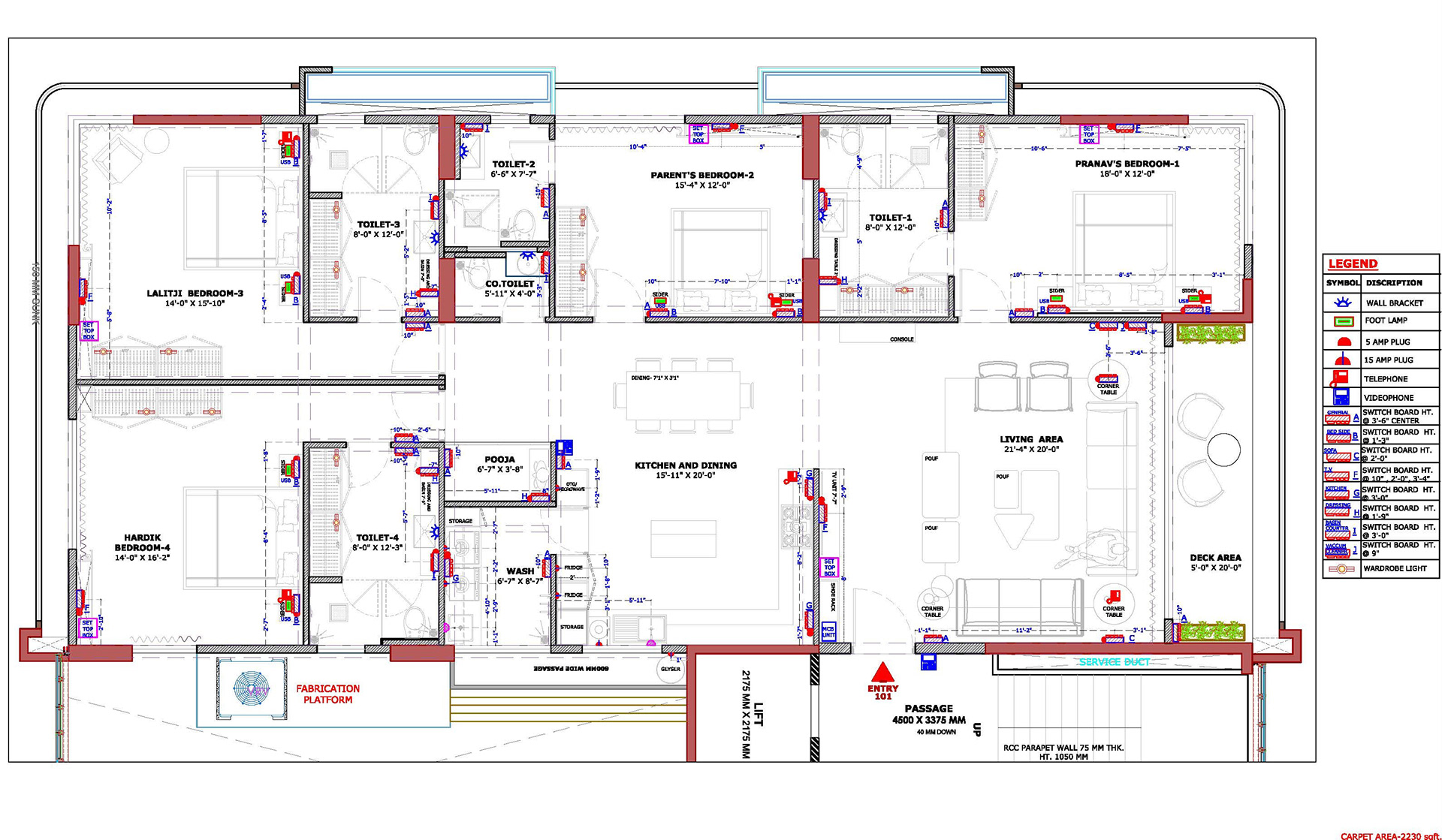

SWITCHBOARD LAYOUT

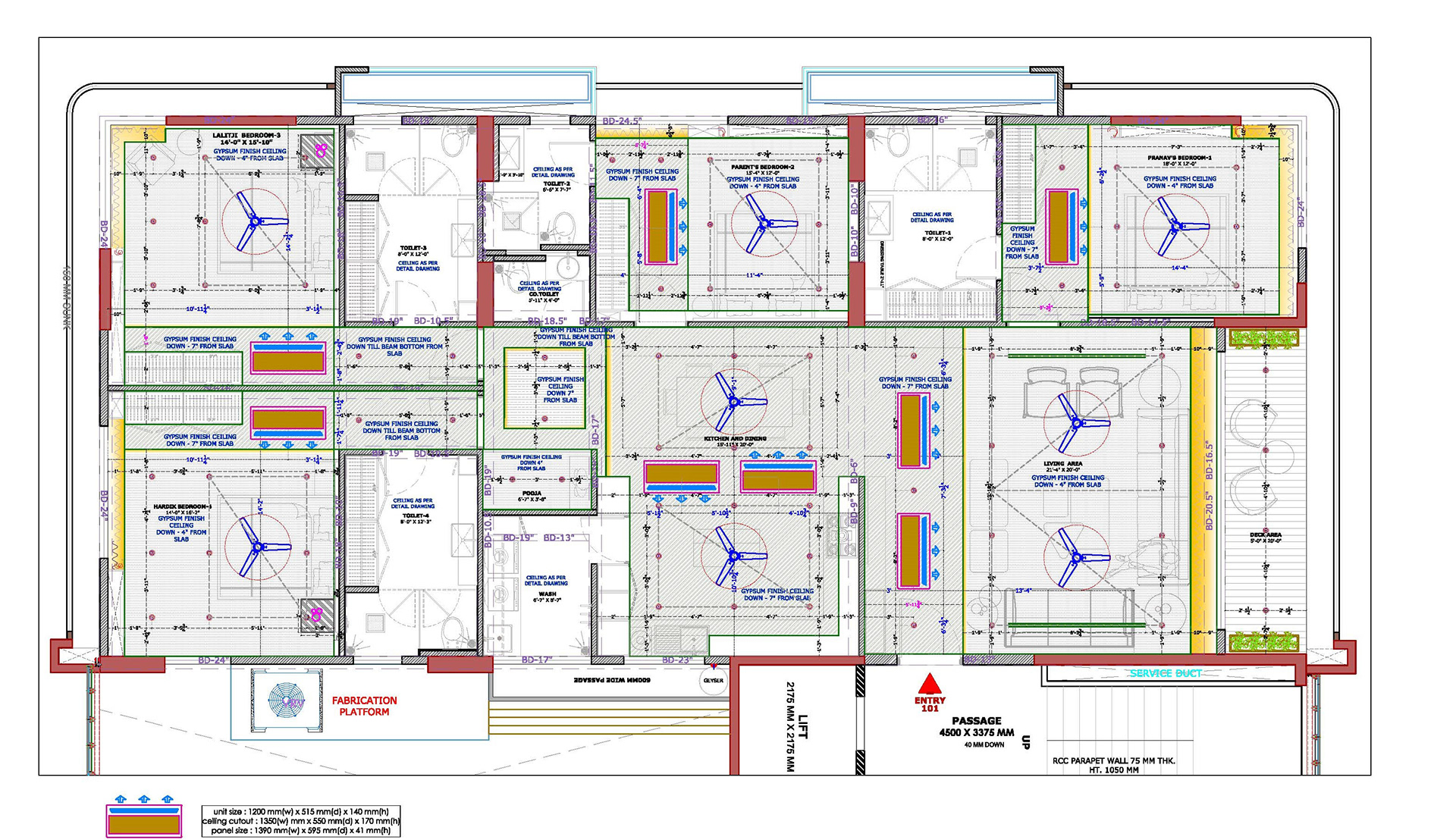

CEILING LAYOUT

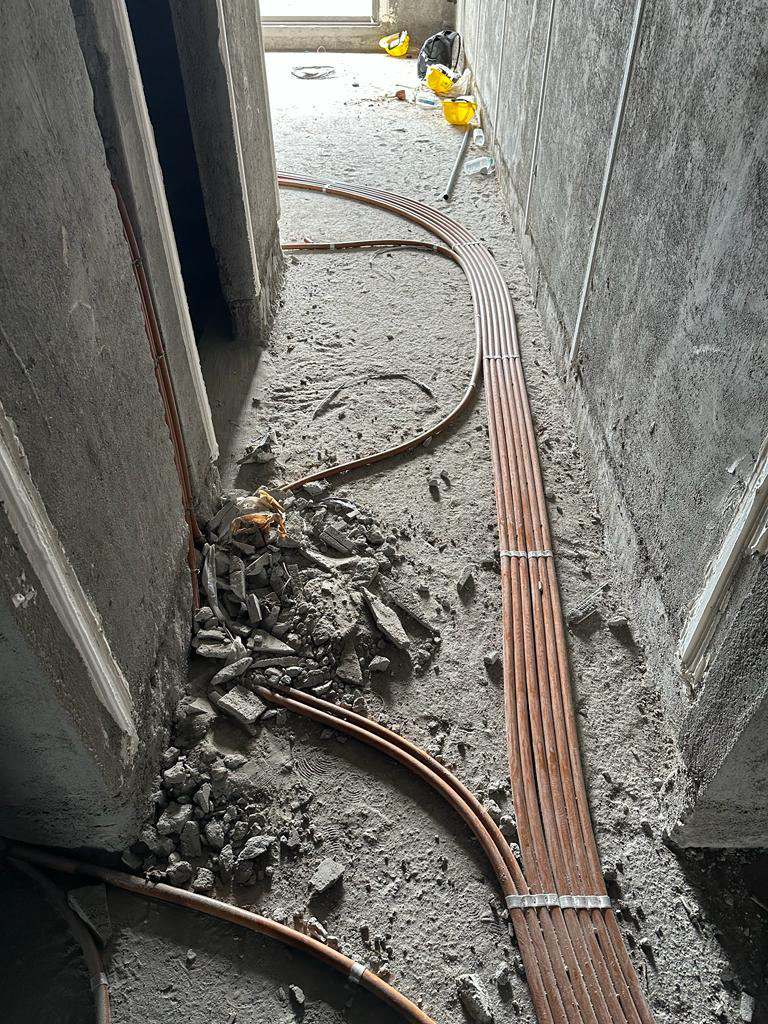

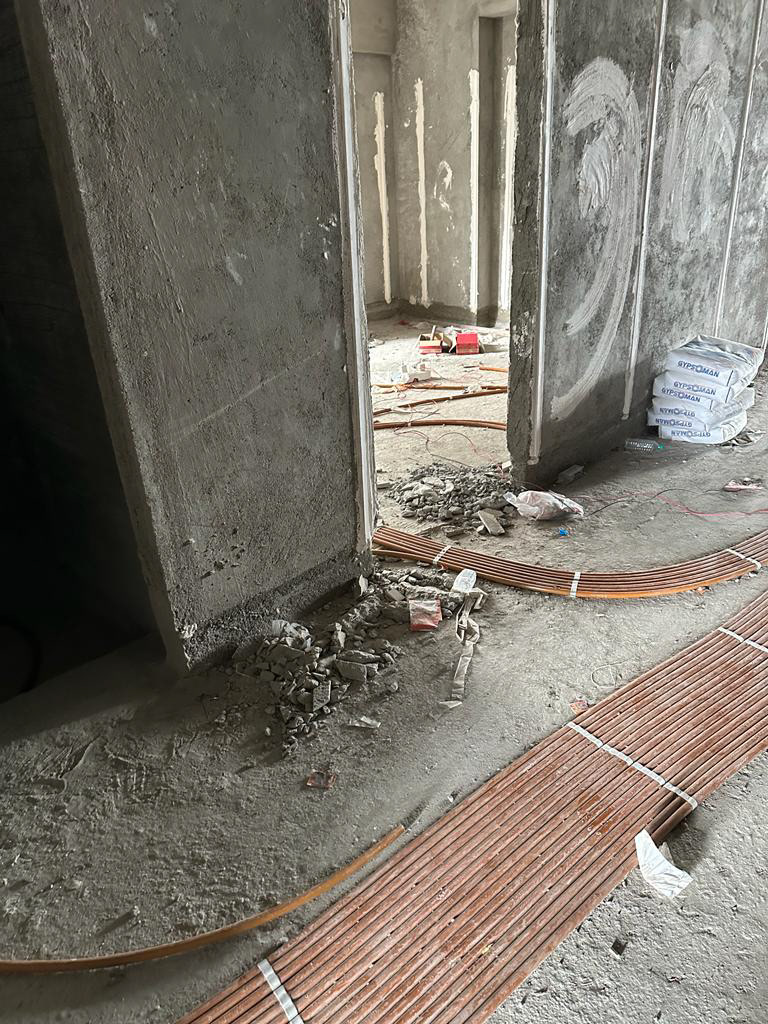

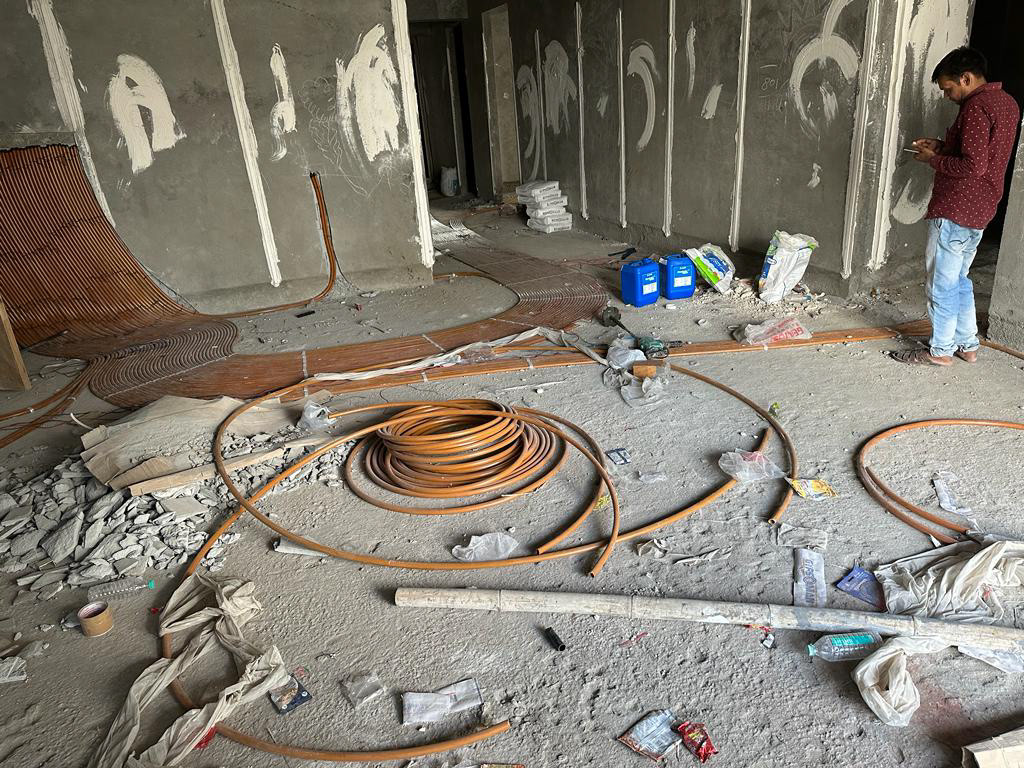

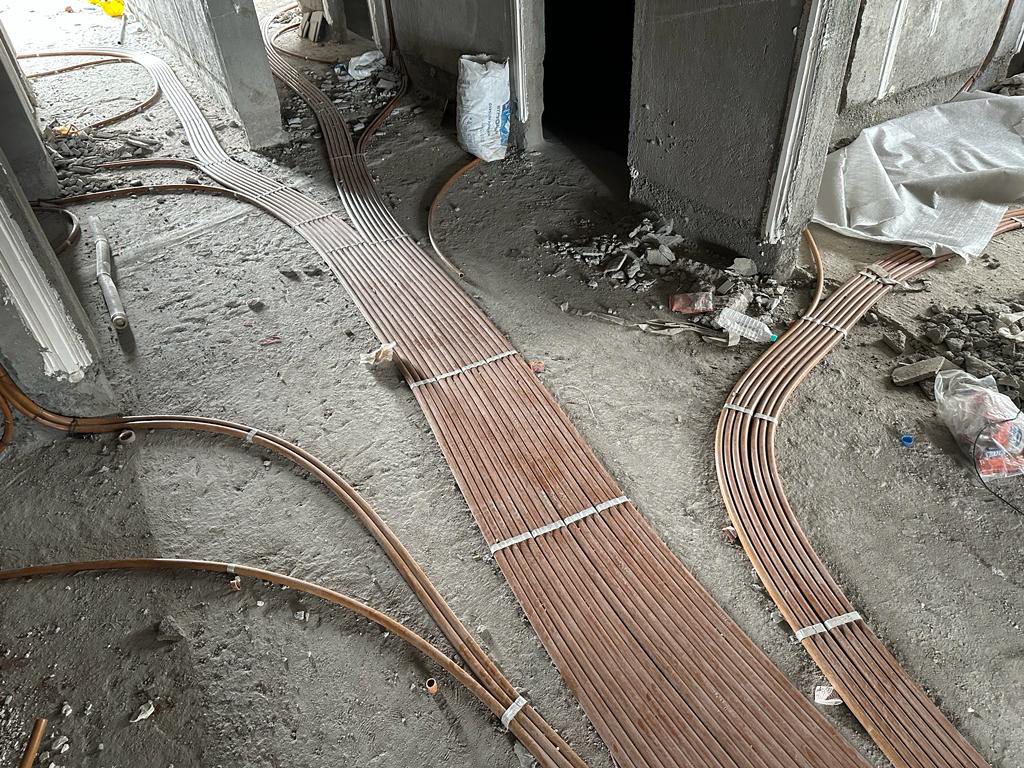

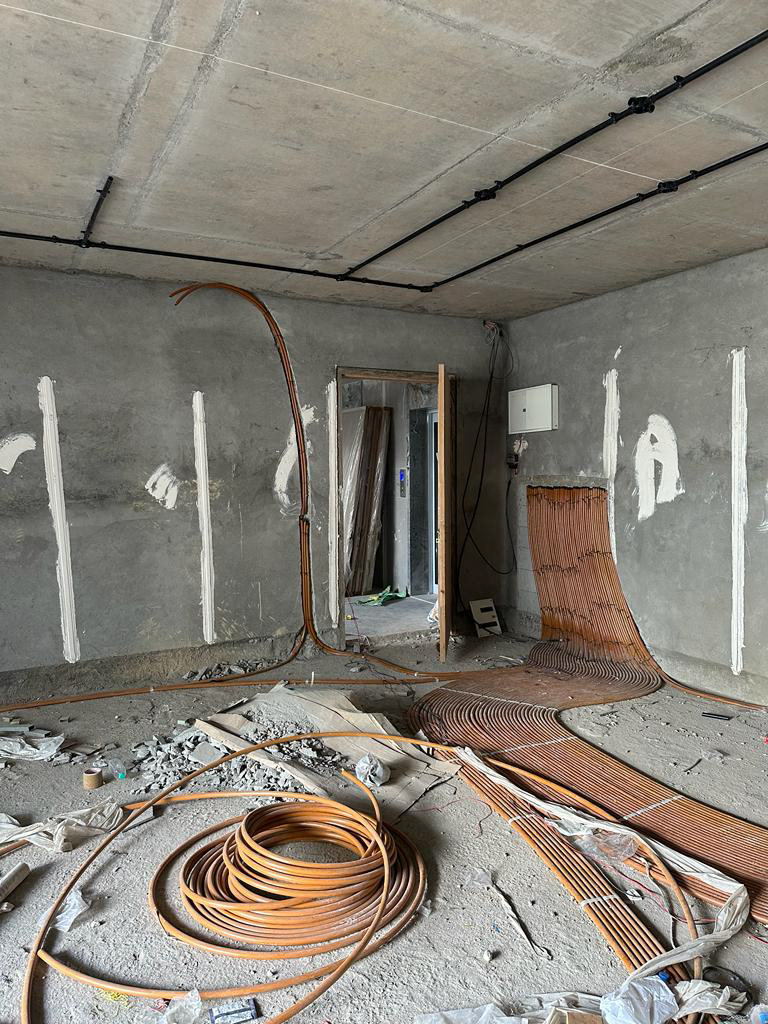

CONDUIT LAYOUT

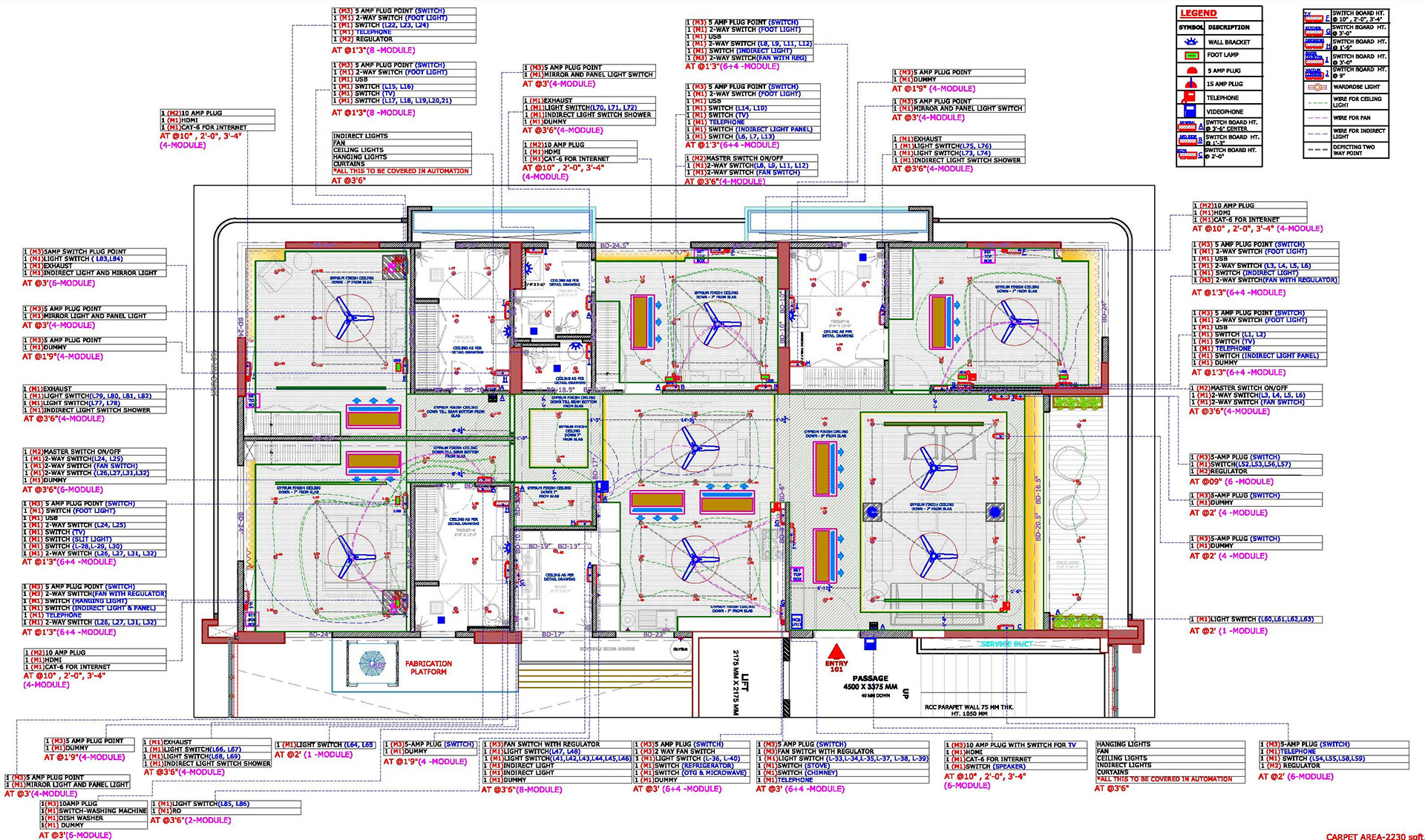

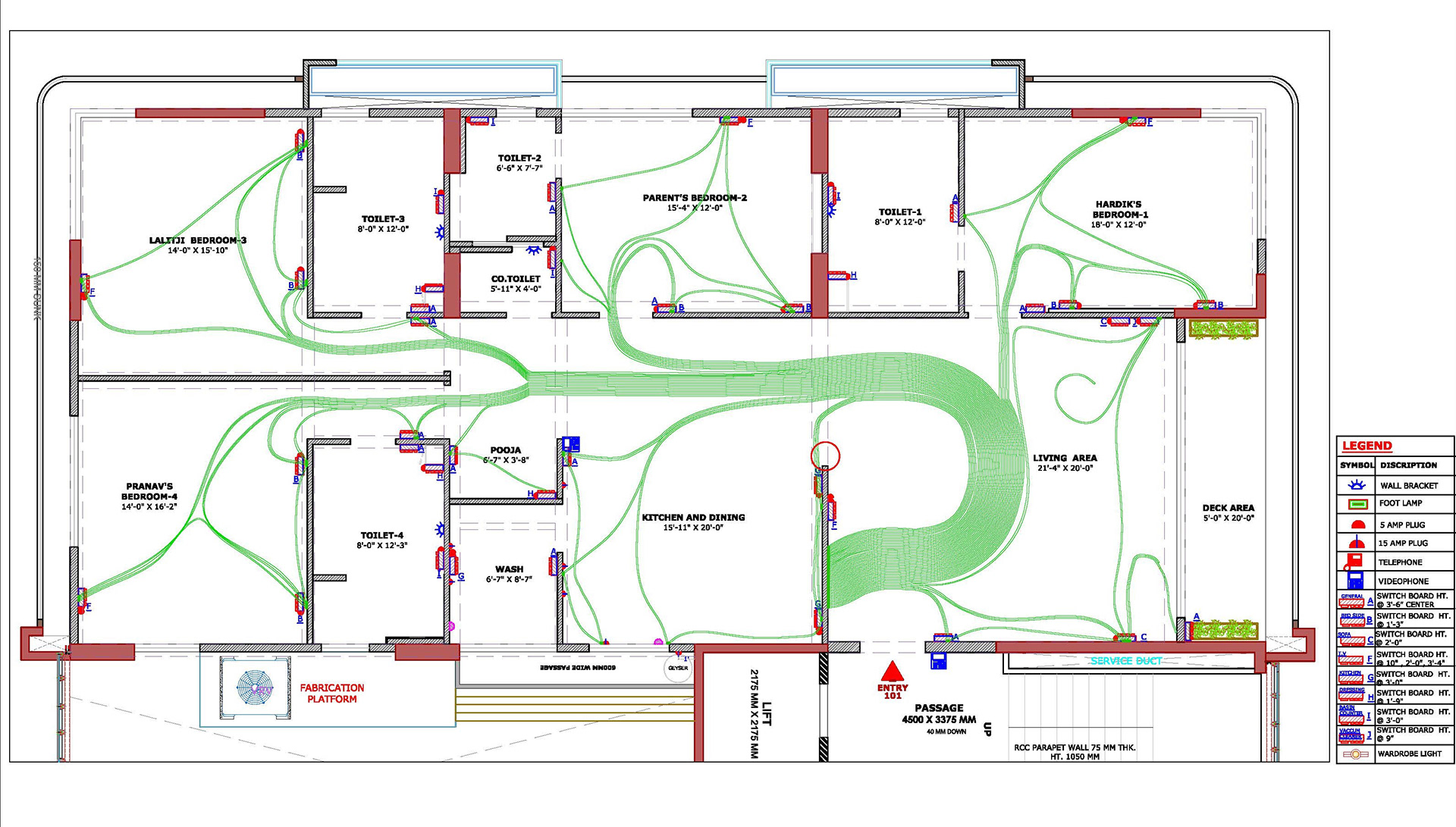

JUMBO ELECTRICAL LAYOUT
This is the Electrical Jumbo Layout of the residence, showing detailed placement of all electrical components. It includes provisions for lighting fixtures, ceiling fans, power points, AC points, TV points, and switchboards in every room. The layout also maps wiring connections, ensuring proper circuit distribution and accessibility. Legends on the side clarify each symbol, making it easy to identify plugs, switches, and panels. Overall, it provides a clear guide for safe and efficient electrical installation throughout the home.

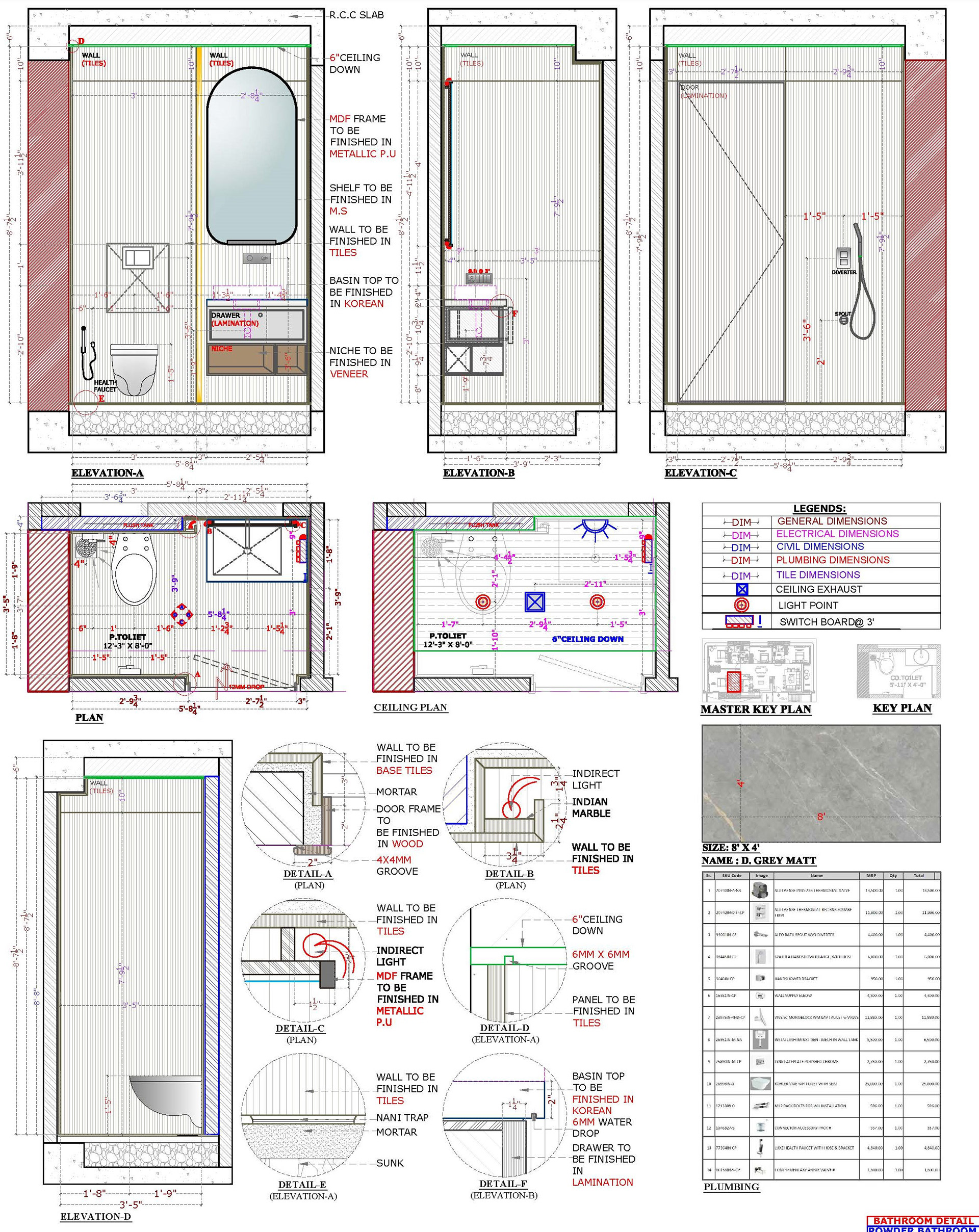

POWDER BATHROOM DETAIL

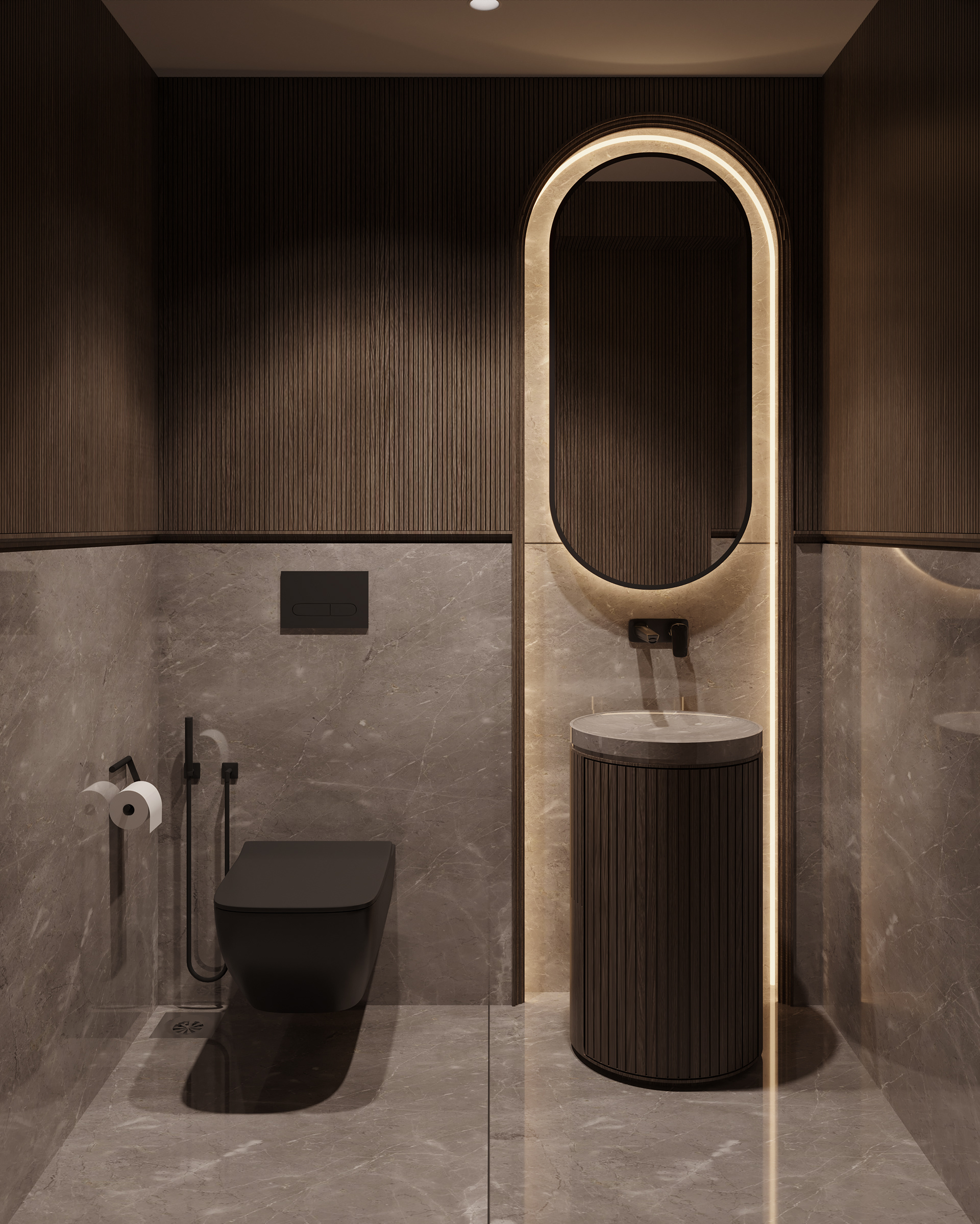

View from powder room
A sleek modern powder room designed with grey marble floors and walls, featuring a wall-mounted black toilet and a compact fluted vanity with a marble top. The arched backlit mirror becomes the focal point, adding warmth and depth, while soft ambient lighting highlights the rich textures, giving the space a refined and luxurious feel.

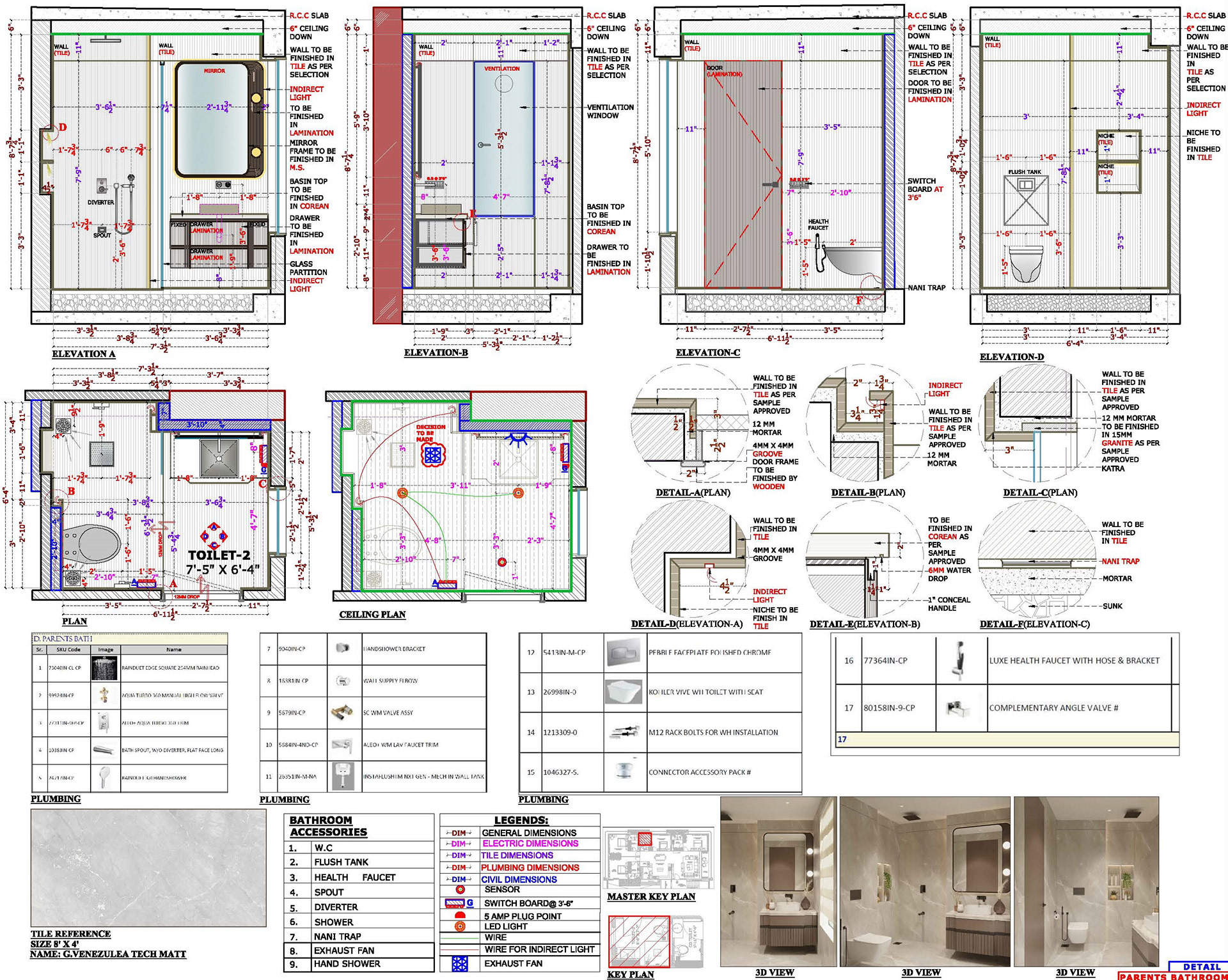

PARENTS BATHROOM DETAIL

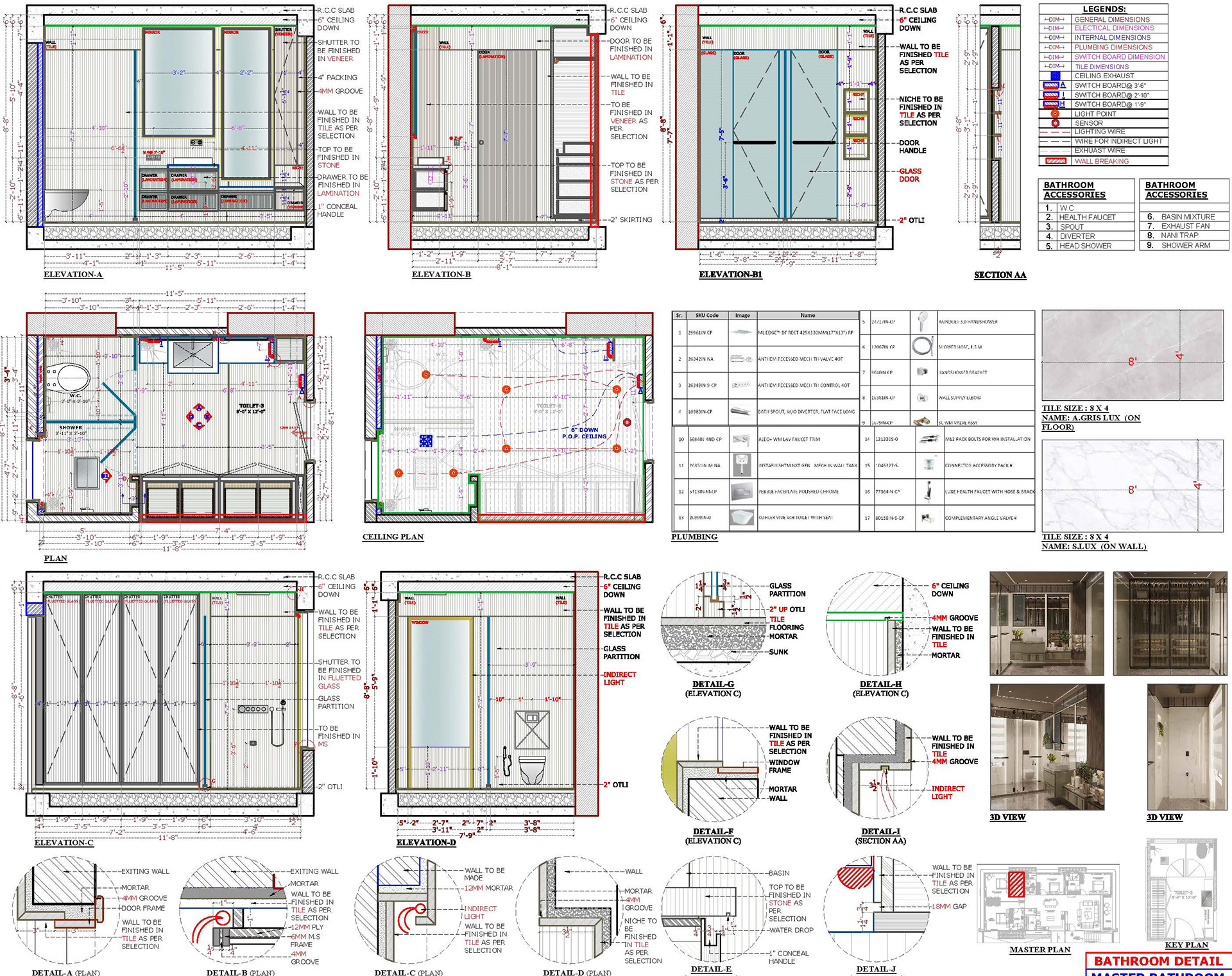

PRIMARY BATHROOM DETAIL
The Parent’s and Primary Bathroom detail drawing presents a complete design with precise plans, elevations, and sectional details highlighting dimensions, wall finishes, niches, lighting, and fixture placement. It specifies accessories such as WC, shower, faucets, and exhaust fan, supported by legends for easy understanding. Enlarged details emphasize material junctions, grooves, and indirect lighting treatments

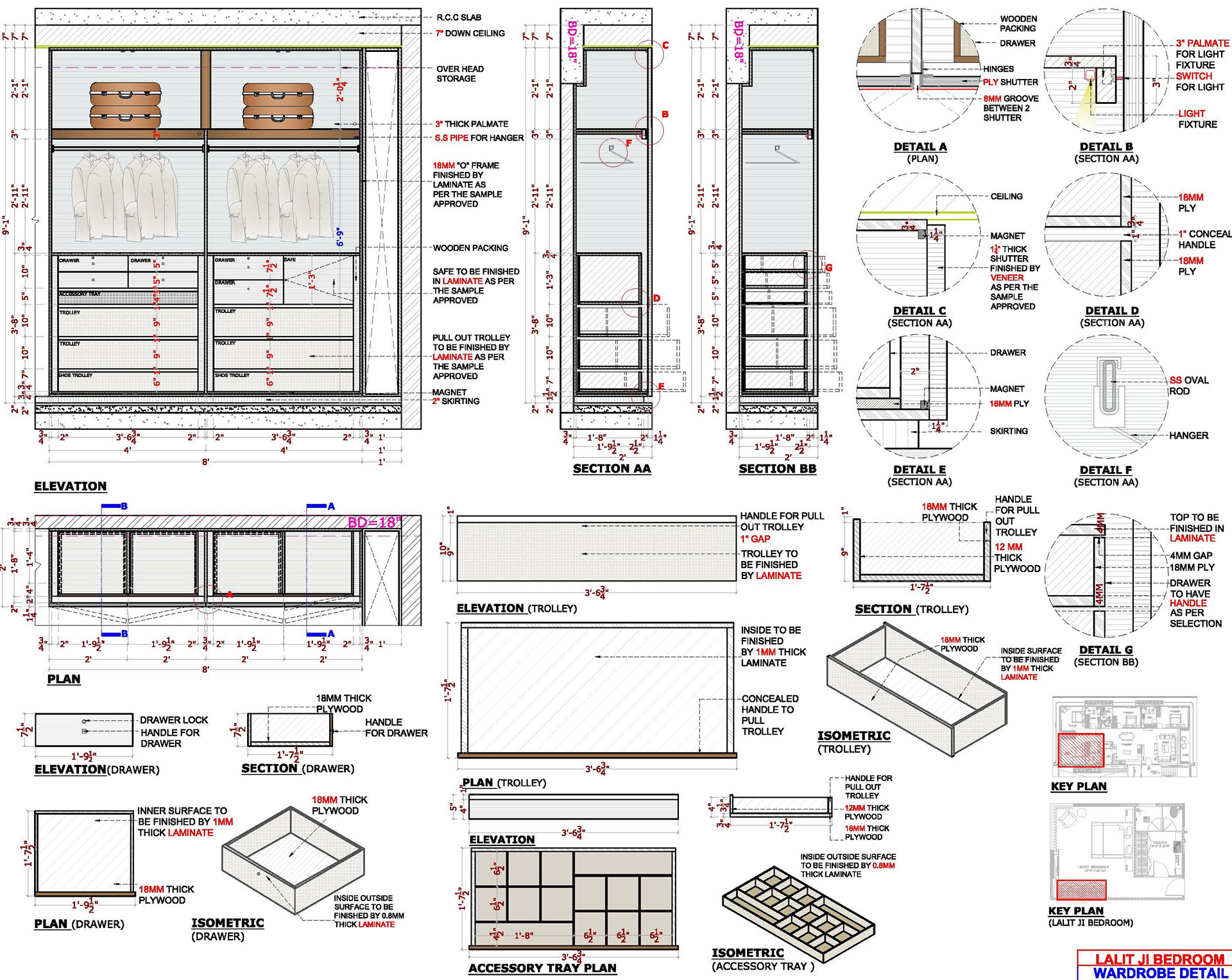

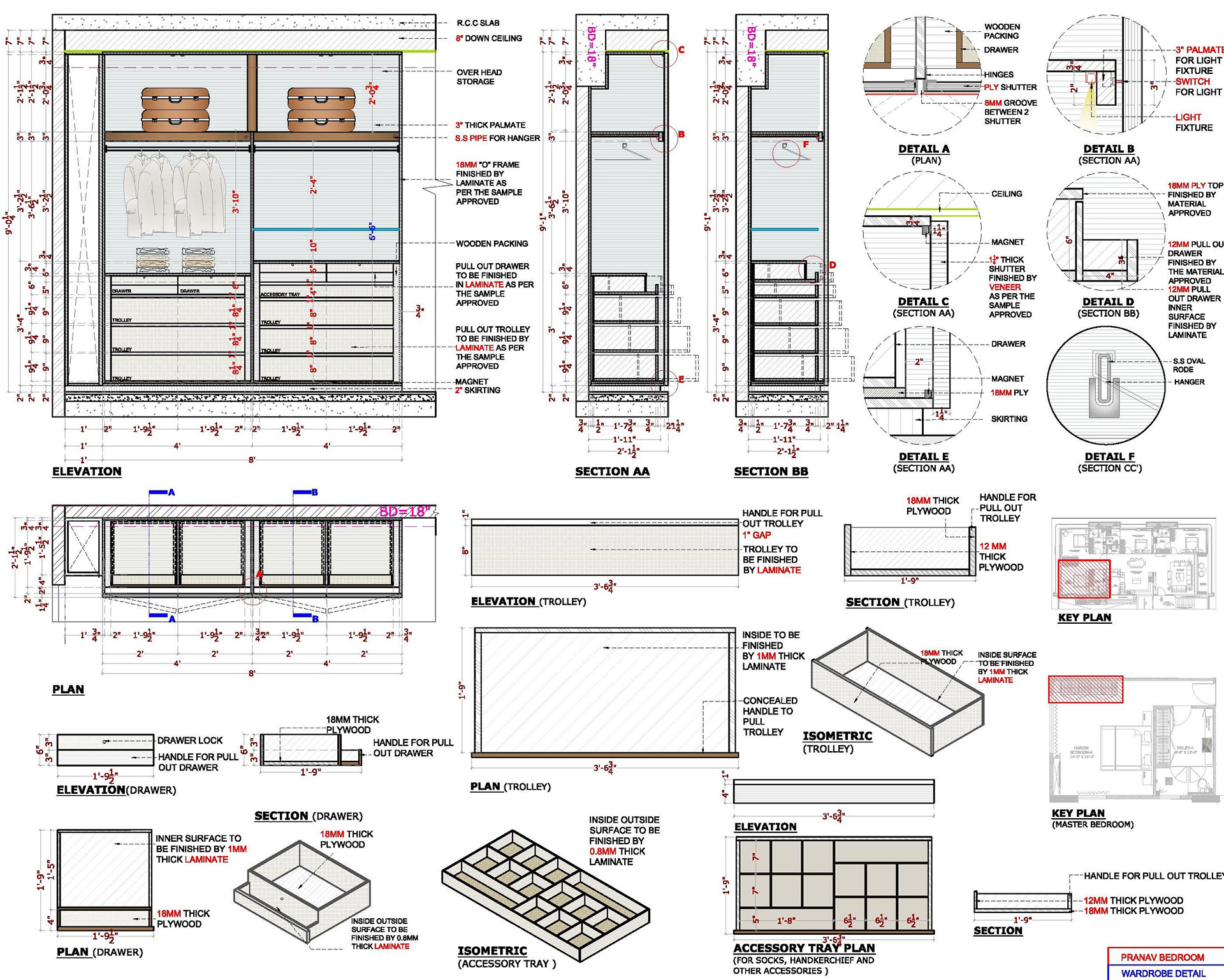

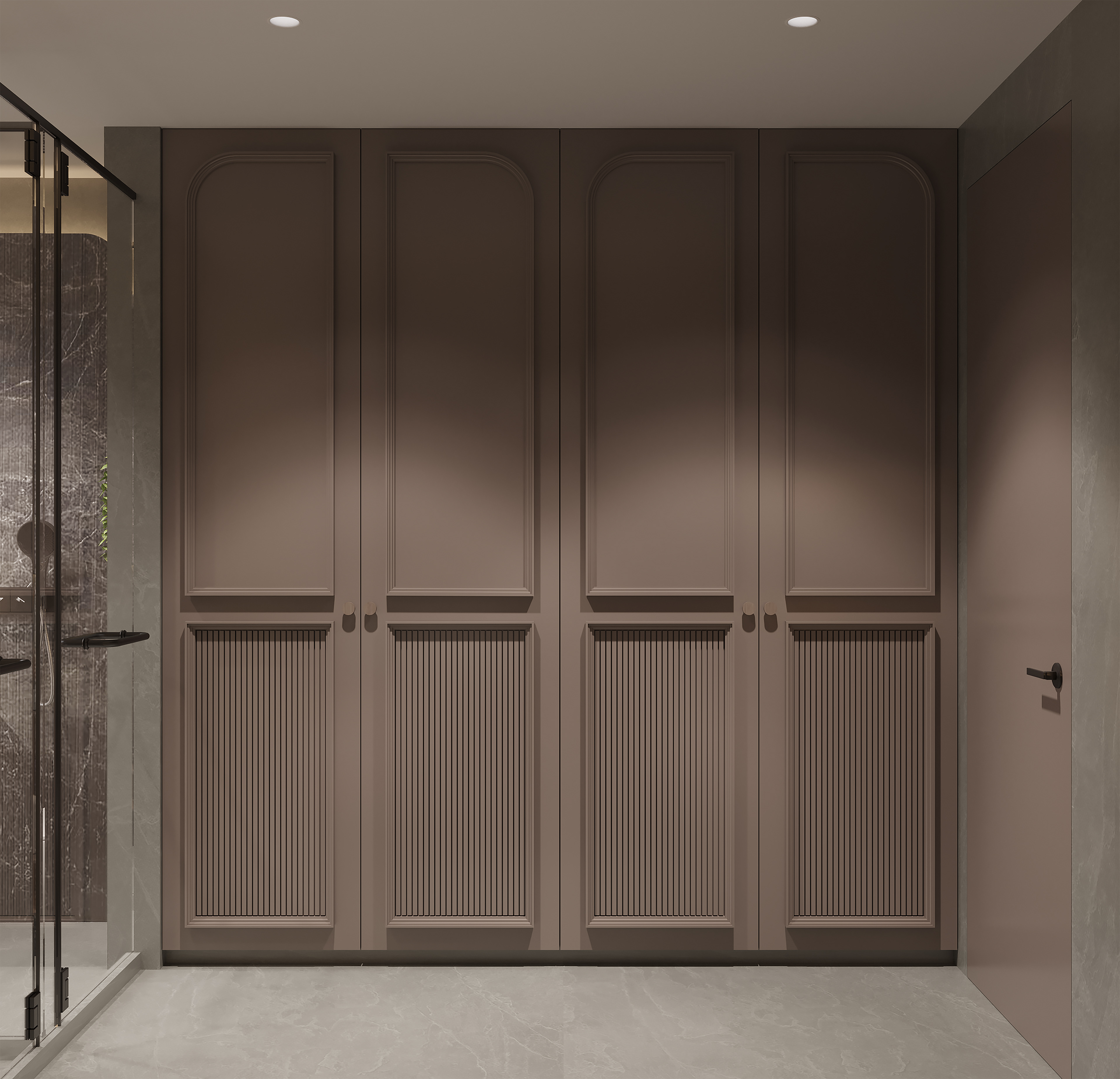

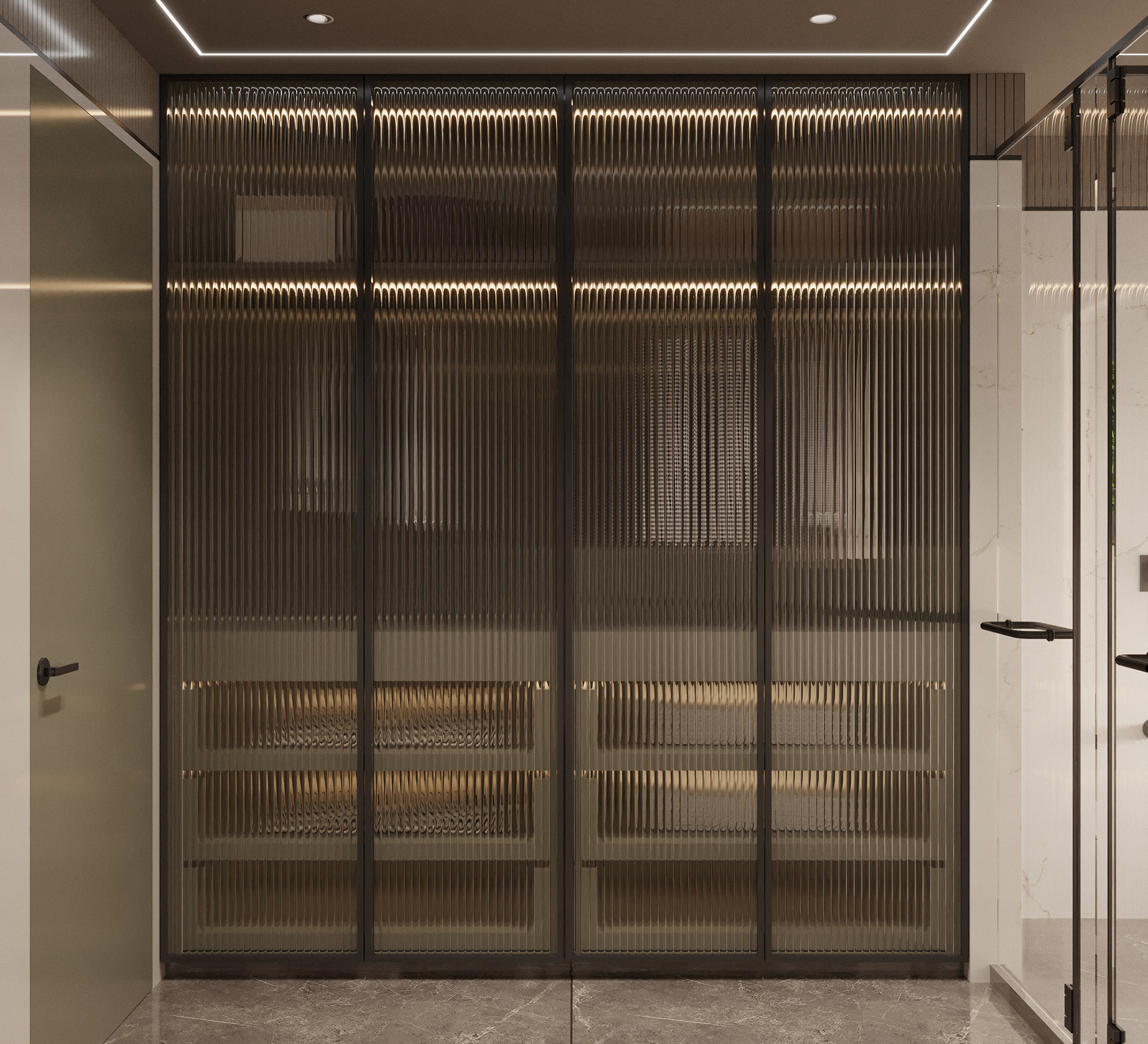

PRIMARY WARDROBE DETAIL

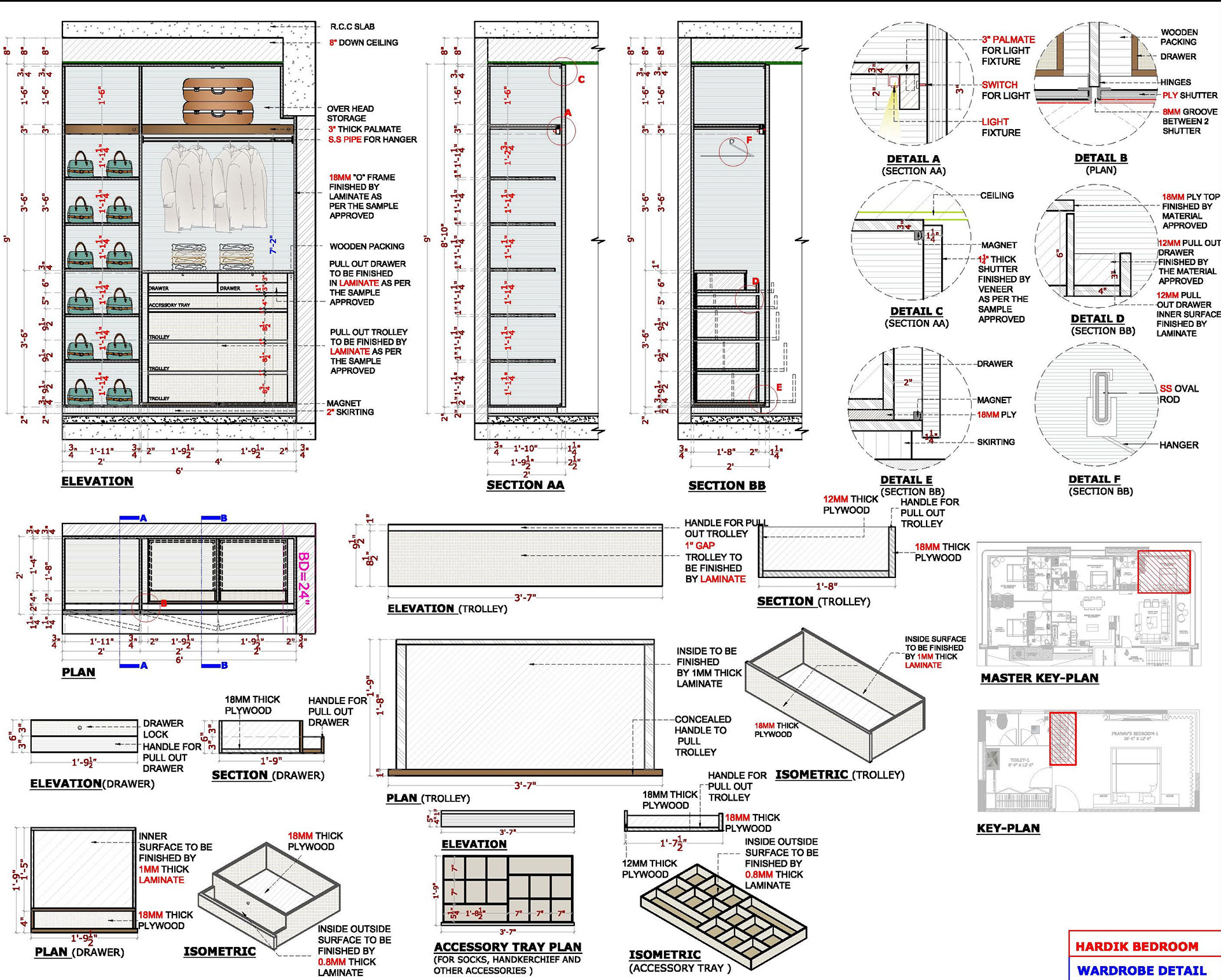

SON'S WARDROBE DETAIL
DAUGHTER'S WARDROBE DETAIL

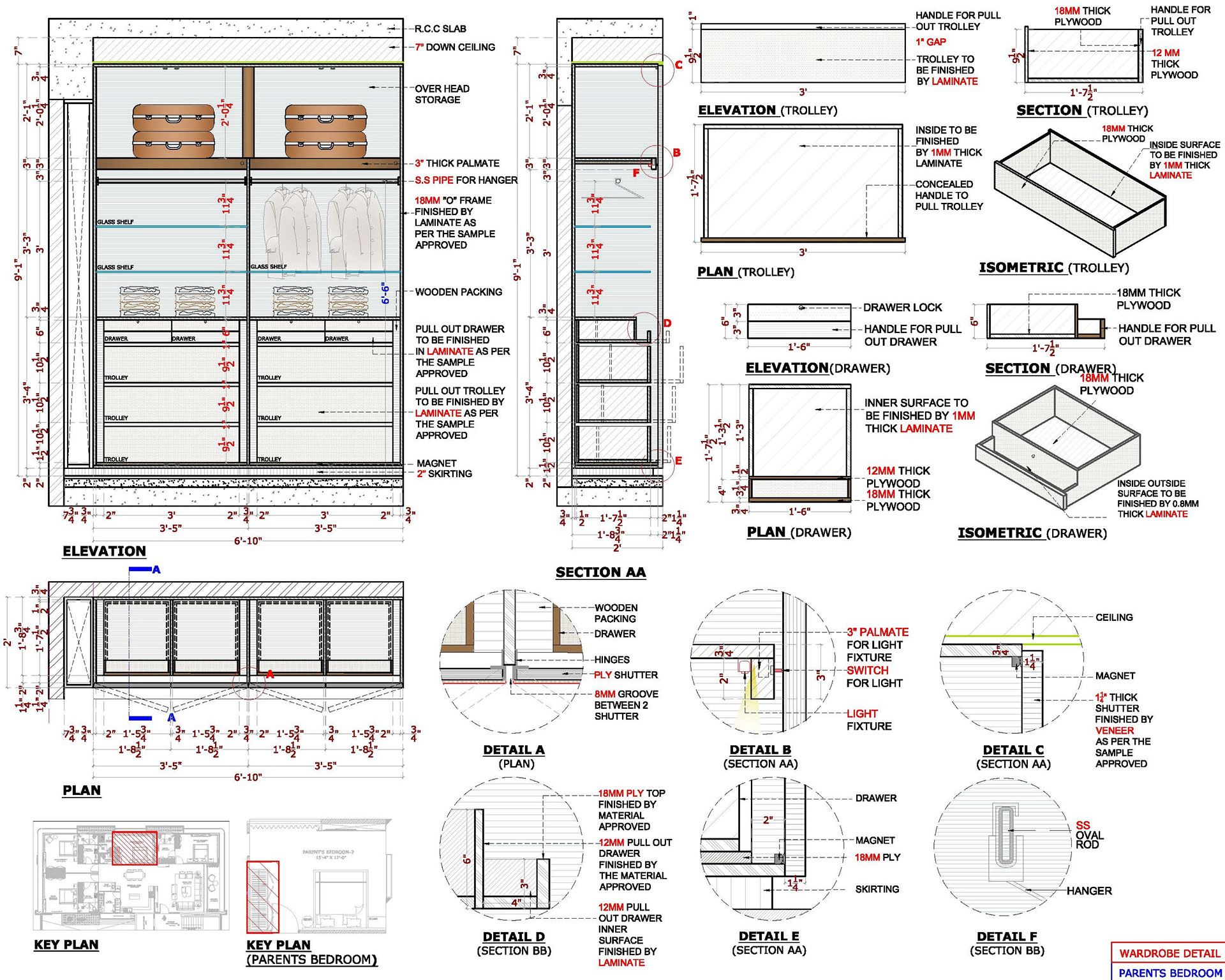

PARENTS WARDROBE DETAIL
These wardrobe details for all bedrooms, showing elevations, sections, and plans with precise dimensions and material specifications. It highlights storage features like overhead cabinets, hanging space, drawers, pull-out trolleys, and accessory trays. Enlarged construction details explain laminates, hinges, handles, and fittings, while isometric views clarify the drawer and trolley design. Overall, it provides a clear guide for crafting a functional, modern, and organized wardrobe system.
